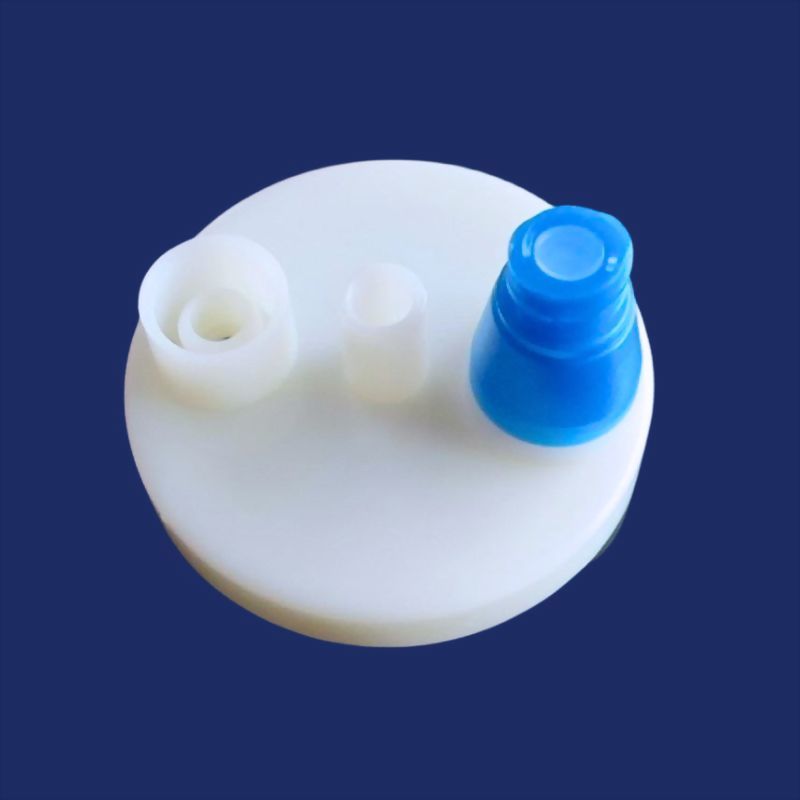

Top Burette Cap with needleless valve 13C013
Top Burette Cap with needleless valve 13C013
for IV bag
Color : Blue
Material : PC + ABS
Color : Blue
Material : PC + ABS
Model :
13C013
- 13C013
- for IV bag
- Color : Blue
- Material : PC + ABS
- Resist high pressure from back side to 7kg/cm2 of air.
- In accordance with leaking test: 2kg/cm2 of air (Above ISO 8536-4-A.2)
- Metal components are not included, MRI compatibility.
- Materials - Medical grade polycarbonate and medical grade silicone, biocompatibility test pass.
- Pressure type - Negative pressure.
- Functional activation - Up to 200 actuations.
- Flow rate - 150 ml / min (at 36 inch head height)
- Residual volume - 0.3ml (inside connector only)
- Reflux Volume - 0.3ml
- Flush Volume - 1.5ml
- Disconnect force - <1kg
- Back Pressure 70psi
- Pressure Maximum 325psi
- Alcohol - Compatible : Yes.
- Lipid - Compatible : Yes.
- Gen 1 Needleless Series Features:
- Developed and produced by CHI-FENG, acquiring patents from multiple countries.
- Gen 1 series is metal-free, adhering to ISO 594 standards for fitting parts.
- Minimized force application for linking to prevent self-dropping of fitting parts.
- Housing and septum material use medical-grade polycarbonate, passing bio-compatibility tests, and resisting lipids and alcohol.
- Housing structure passed blood compatibility test, reducing hemolysis during blood flow.
- Silicone seal can be activated up to 200 times for repeated use.
- Swabable surface around the top of the housing creates an initial microbial barrier.
- Fluorescein dye test confirms no residual dye on the swabable surface after disconnecting.
- Suitable for high-pressure infusion therapy, resisting up to 7kg/cm2 pressure when not connected and 24kg/cm2 (350PSI) when connected to the pipeline.
- Comply with ISO 594 standards
- Simple mechanism design
- Easy to clean swabable surface.
- High pressure compatibility
- Pass biocompatibility test
- Patented model designs with multiple countries' patents.
