Gen1 Needle Free Connector
Gen1 Needle Free Connector
Needle Free Connector Manufacturer
Needleless Infusion Devices by Chi-Feng Plastic
- Developed and produced by Chi-Feng Plastic
- Acquired patents from multiple countries
- Gen 1 Needleless series is entirely metal-free

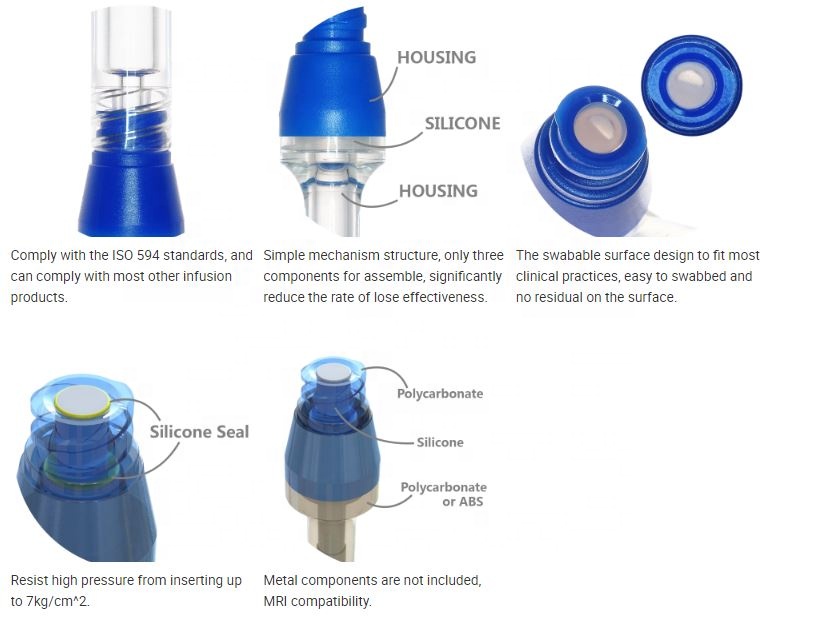

Features
- Fitting part follows ISO 594 standards and has undergone rigorous testing
- Compatible with any infusion products that adhere to ISO 594 standards
- Minimized force required for connection
- Prevents accidental disconnection due to external force or internal pressure
- Housing and septum materials are medical-grade polycarbonate and have passed medical-grade silicone, biocompatibility, lipid, and alcohol resistance tests
- Housing structure has passed blood compatibility tests to minimize hemolysis during blood flow through the valve
- Silicone seal can withstand up to 200 actuations
- Swabable surface around the top of the housing creates the first microbial barrier protection
- Fluorescein dye test confirms that no dye residue remains on the swabable surface after disconnection and swabbing
Additional Benefits
- Suitable for high-pressure infusion therapy
- Resists pressure up to 7 kg/cm2 when the insert part is not connected
- Resists pressure up to 24 kg/cm2 (350 PSI) when connected
Overall, the ChiFeng Gen 1 Needleless Infusion Devices offer a safe, reliable, and easy-to-use solution for needleless infusion therapy.
Needleless Straight pipe 11C005
Straight type connector for OD 4mm tubing
Color : Blue
Material : PC + MABS
Color : Blue
Material : PC + MABS
Straight type connector 14C001
Straight type connector for OD 4.4mm tubing or ID 6.8~7.2mm tubing
Color : Blue
Material : PC + P
Color : Blue
Material : PC + P
Gen1 connector + 15B006 small adapter 15C007
Gen1 connector + 15B006 small adapter
Color : Blue
Material : PC + MABS + PALL Filter + PP (Cap)
Color : Blue
Material : PC + MABS + PALL Filter + PP (Cap)
Slip luer type connector 14C010
Slip luer type connector
for ID 4mm tubing
Color : Blue
Material : PC + PC
for ID 4mm tubing
Color : Blue
Material : PC + PC
Straight type connector 11C017
Straight type connector for OD 2.3mm tubing
Color : Blue
Material : PC + MABS
Color : Blue
Material : PC + MABS
Gen1 Needle Free Connector 13C002
Y connector for OD 2.3mm tubing
Color : Blue
Material : PC + MABS
Color : Blue
Material : PC + MABS
