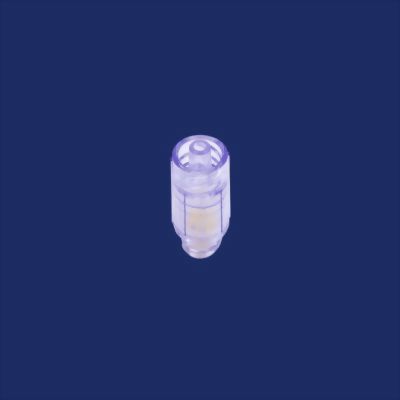

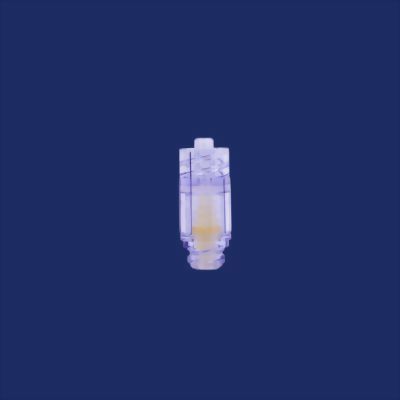

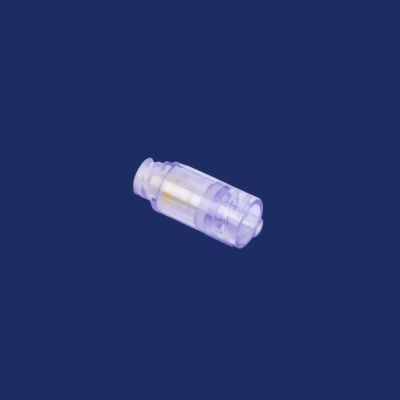

Straight type connector 18C024
Straight type connector 18C024
Injection site
Color : Yellow + Transparent
Material : PC + MABS
Color : Yellow + Transparent
Material : PC + MABS
Model :
18C024
- 18C024
- Injection site
- Color : Yellow + Transparent
- Material : PC + MABS
- Application : for CSTD with P/N: 18C025 Superior CML
- Materials - Medical grade polycarbonate and medical grade silicone, biocompatibility test pass.
- Pressure type - Neutral pressure.
- Functional activation - Up to 200 actuations.
- Flow rate - 120 ~ 145 ml / min (at 35.4 inch head height).
- Residual volume - 0.016ml
- Reflux Volume - 0.01ml
- Flush Volume - Minimal dead space (also referred to as residual volume) of 0.016 mL allows for lower flush volumes.
- Disconnect force - <1kg
- Pressure leakage - Up to 1.5kg/cm2 of air (Disconnection)
- Back Pressure40~70psi
- Pressure Maximum：140~300psi
- Alcohol - Compatible : Yes.
- Lipid - Compatible : Yes.
General Features:
Specific Features:
Benefits:
- Developed and produced by CHI-FENG with multi-country patents.
- Utilizes a neutral pressure design for patient comfort.
- Excludes metal components to prevent malfunctions and MRI interference.
- Compatible with a wide range of infusion products (ISO 594 standard).
- Housing and septum material ensure fluid visibility and biocompatibility.
- Silicone seal is reusable and provides an initial microbial barrier.
Specific Features:
- Fluorescein Dye Test: No residual dye after disconnecting and swabbing.
- High-Pressure Infusion Capability: #16C002 model withstands pressures up to 325PSI.
Benefits:
- Reduced pain for patients during needle insertion and removal.
- Improved safety for healthcare workers by minimizing needle stick injuries.
- Increased compatibility with existing medical equipment and procedures.
- Enhanced patient comfort and satisfaction.
- Comply with ISO 594 standards
- Easy to clean swabable surface
- Neutral pressure, reduce the pain of insert and pull out the needle
- Low residual, only 0.016ml priming volume when disconnected
- Biocompatibility test pass
- Easy to visualize the fluid path
- Small size, acquired patents from multiple countries
